13、Docker-Swarm搭建

  • 布置节点:2主2从

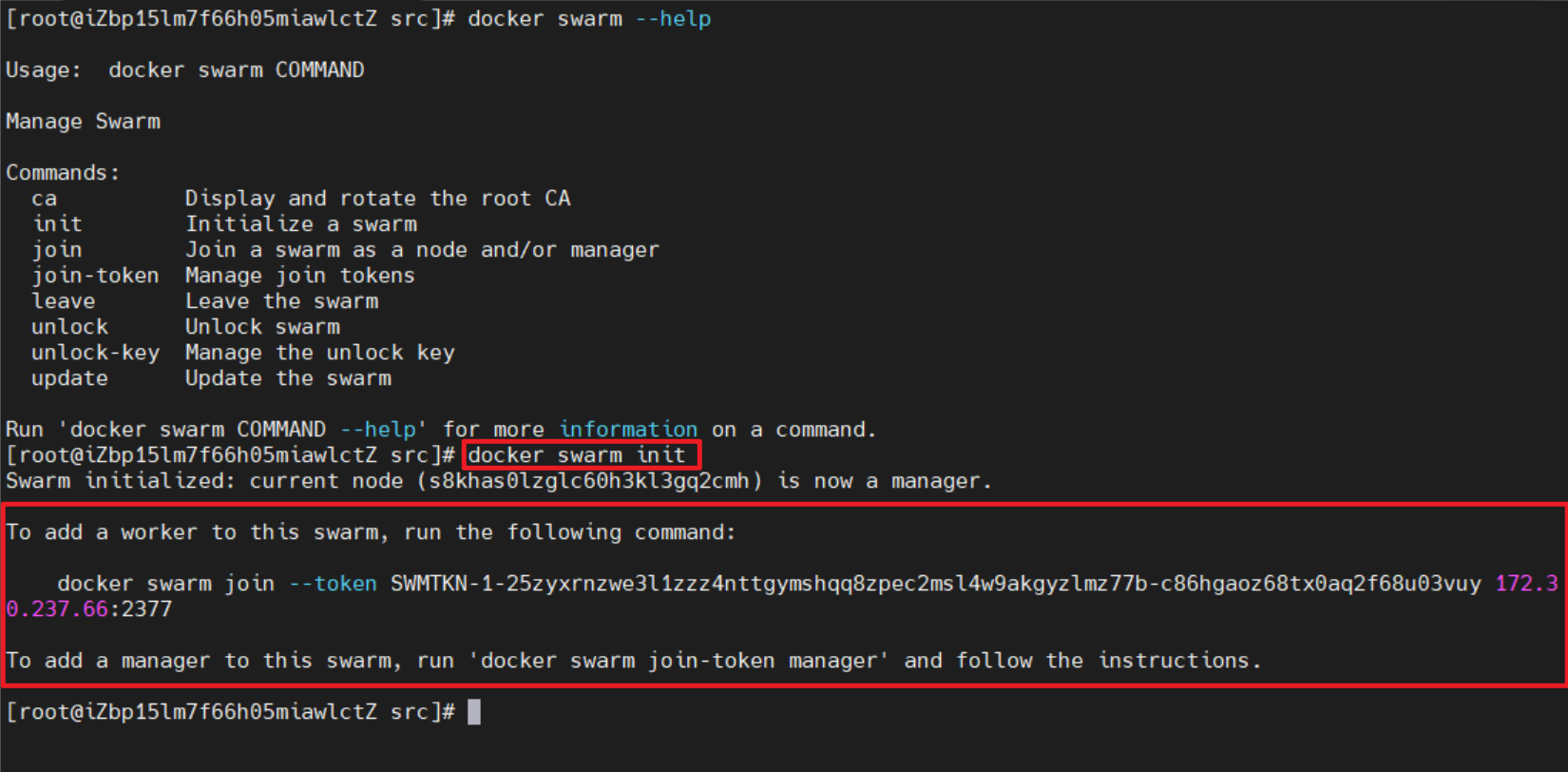

  • 初始化一个swarm集群

 docker swarm -init

现在docker swarm初始化完成,这台服务器是当前swarm集群的leader、同时也是管理节点(manager);

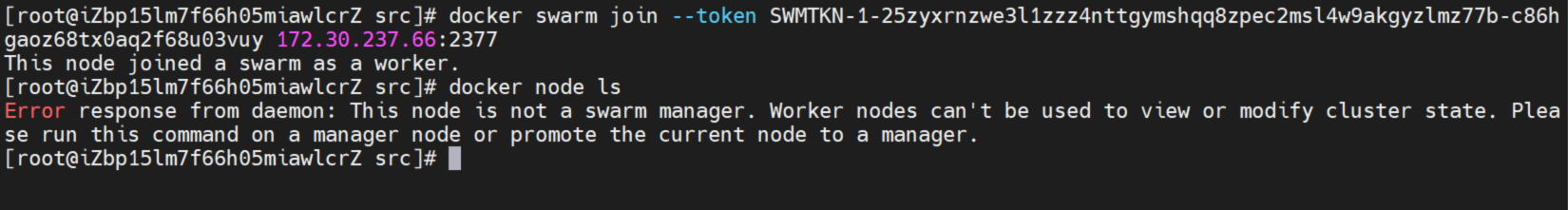

如果想添加工作节点到当前集群,在目标服务器使用之前生成的命令即可;

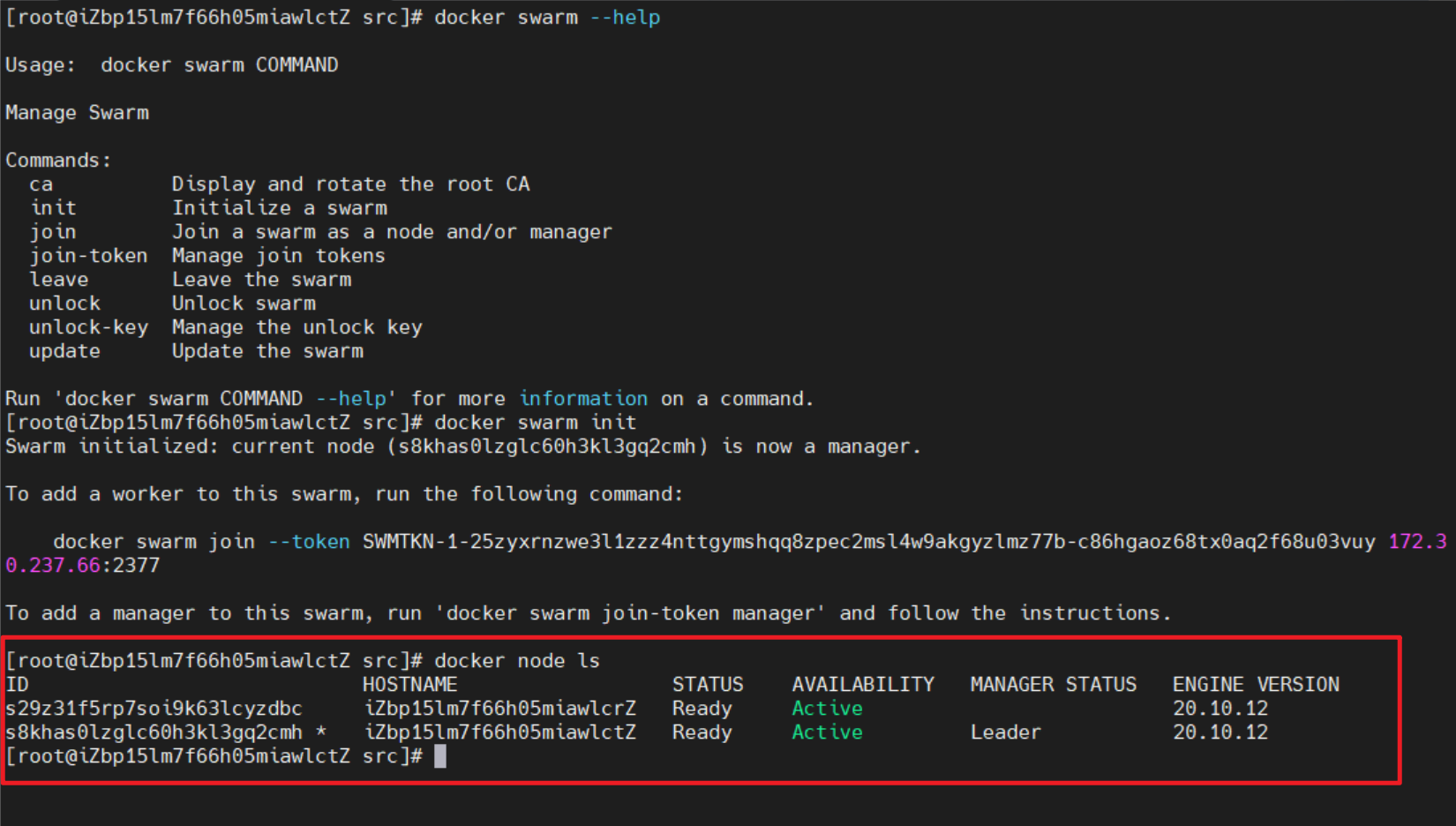

  • 回到管理节点查看节点列表

 docker node ls

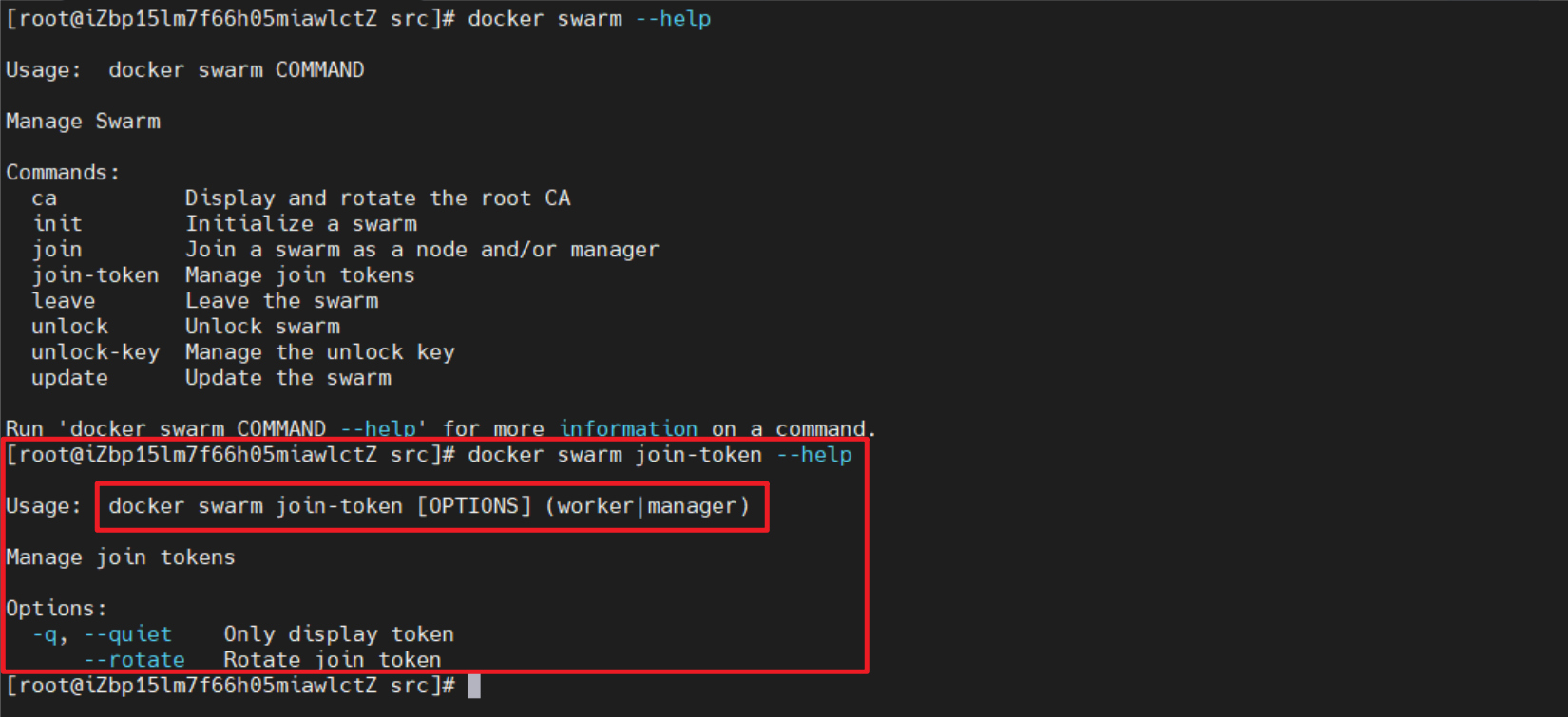

  • 生成新的token,添加新的管理节点

# 生成管理节点token(manager)
docker swarm join-token manager
# 生成工作节点token(worker)
docker swarm join-token worker

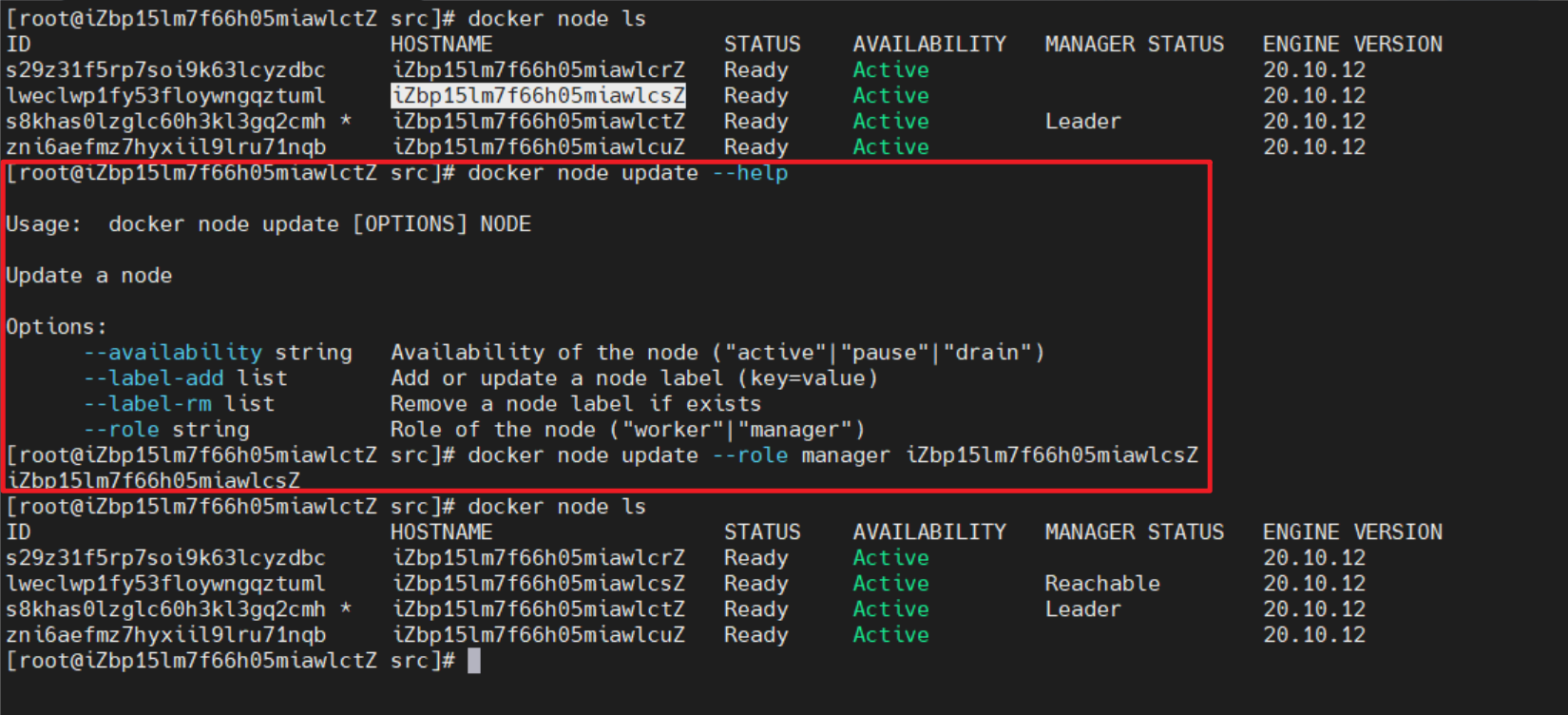

  • 我这里配了1主3从,现在通过更改角色来实现2主2从

# docker node update --help

Usage:  docker node update [OPTIONS] NODE

Update a node

Options:
      --availability string   Availability of the node ("active"|"pause"|"drain")
      --label-add list        Add or update a node label (key=value)
      --label-rm list         Remove a node label if exists
      --role string           Role of the node ("worker"|"manager")

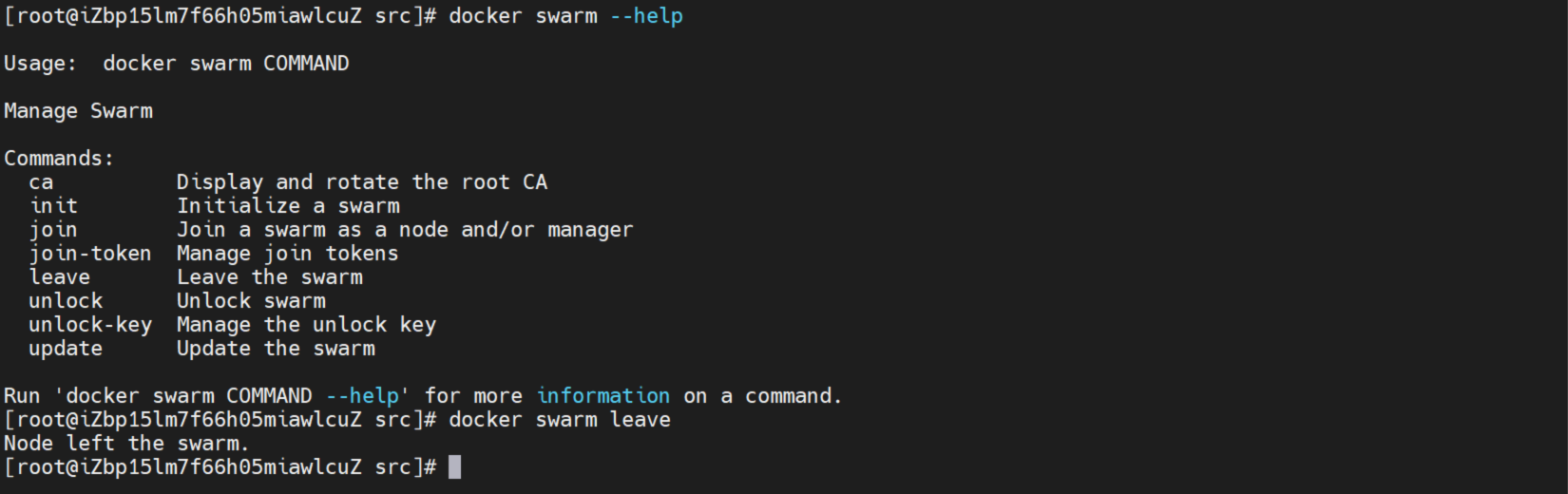

  • 删除节点

# 在目标机器上输入命令(如果是管理节点离开,需要命令后面加 '--force')
docker swarm leave

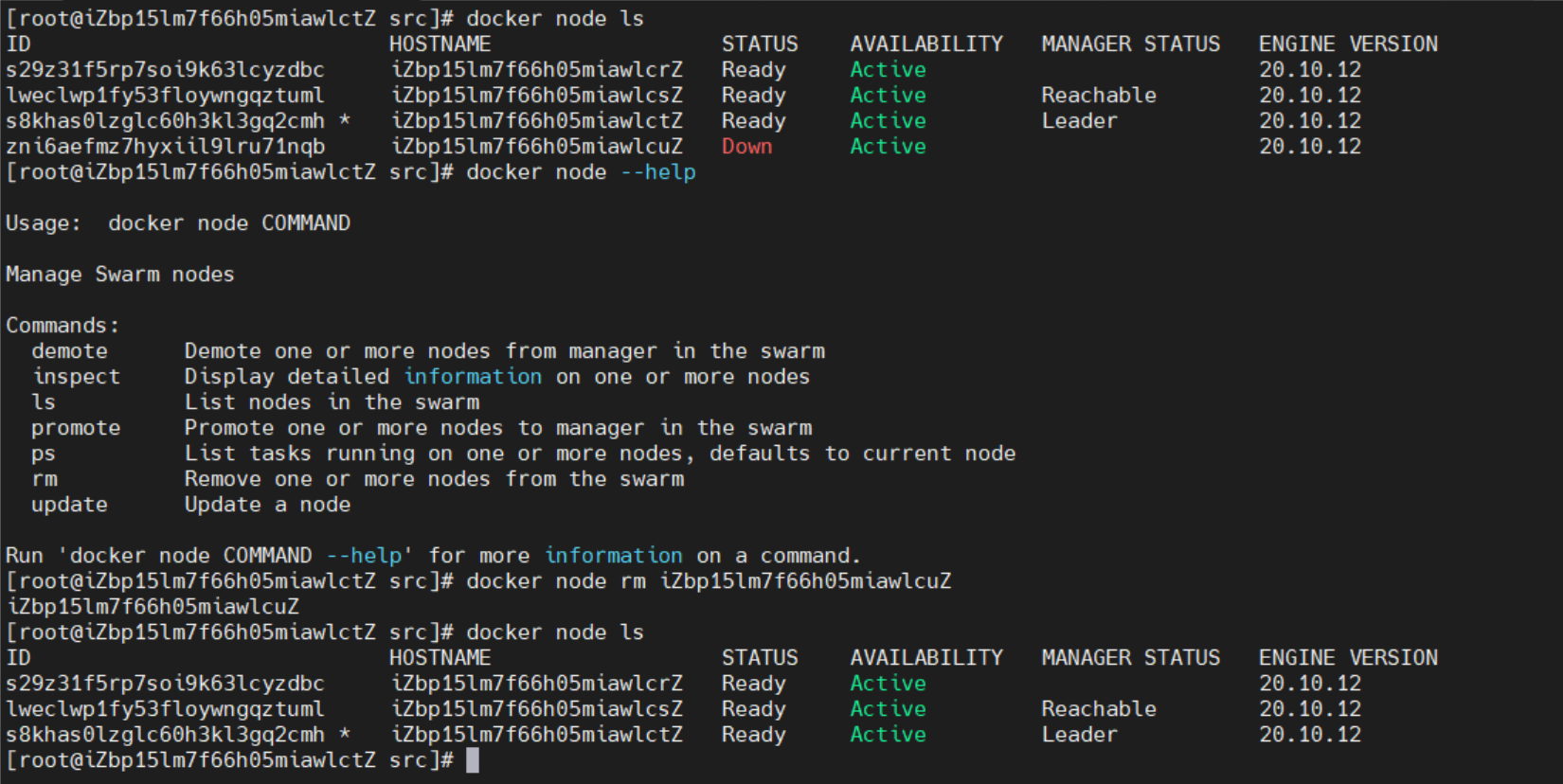

回到管理节点,查看节点状态有一个显示离开;

使用docker node rm 命令移除节点

# docker node --help

Usage:  docker node COMMAND

Manage Swarm nodes

Commands:
  demote      Demote one or more nodes from manager in the swarm
  inspect     Display detailed information on one or more nodes
  ls          List nodes in the swarm
  promote     Promote one or more nodes to manager in the swarm
  ps          List tasks running on one or more nodes, defaults to current node
  rm          Remove one or more nodes from the swarm
  update      Update a node

Run 'docker node COMMAND --help' for more information on a command.
  • 补充:如果你想自定义一个swarm网络

docker network create -d overlay --attachable swarm-overlay

切记一定要带上--attachable参数

否则会出现奇怪的报错

ERROR: for redis_redis_1  Cannot start service redis: Could not attach to network swarm-overlay: rpc error: code = PermissionDenied desc = network swarm-overlay not manually attachable

ERROR: for redis  Cannot start service redis: Could not attach to network swarm-overlay: rpc error: code = PermissionDenied desc = network swarm-overlay not manually attachable
ERROR: Encountered errors while bringing up the project.
